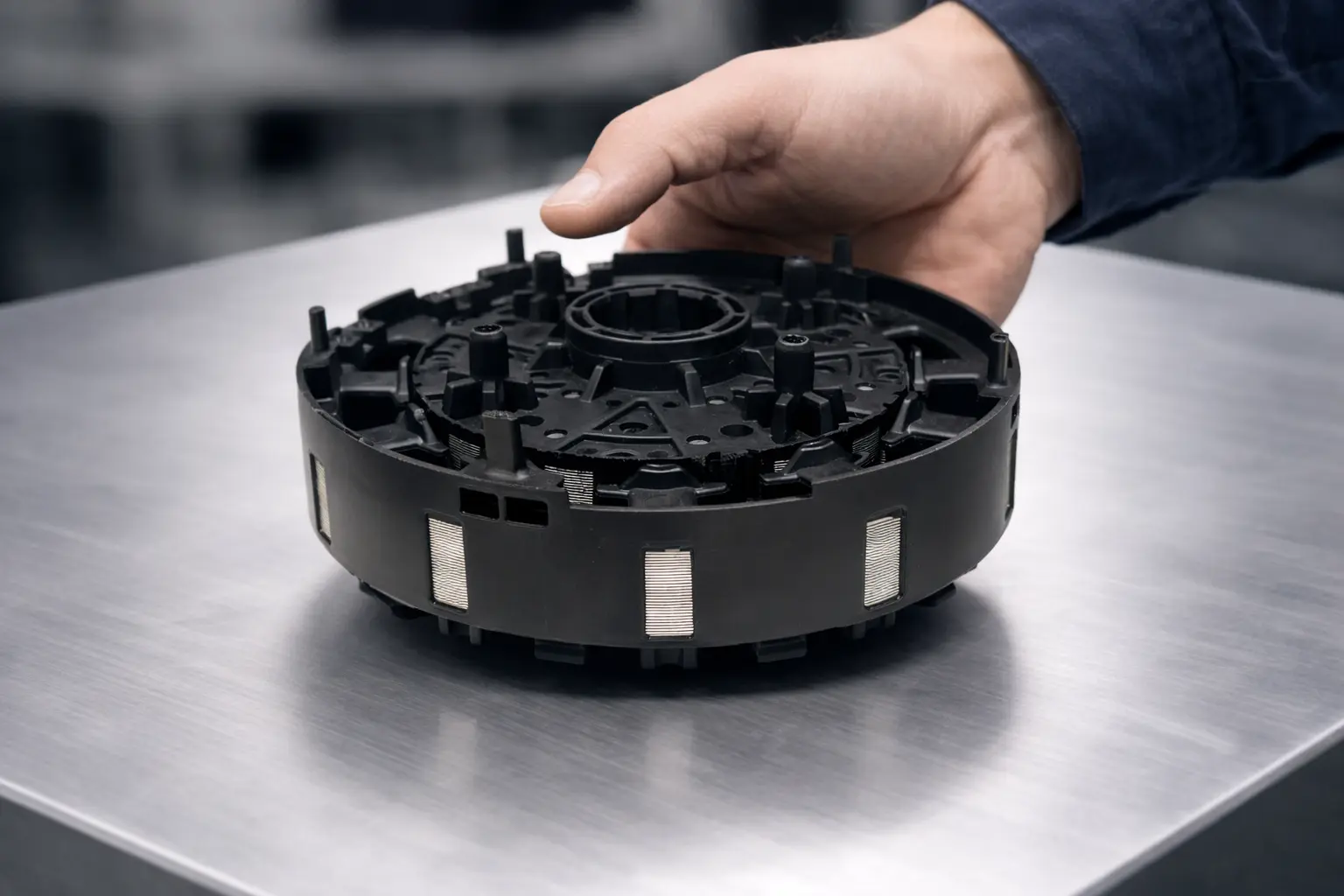

Busbar, Stator & Rotor

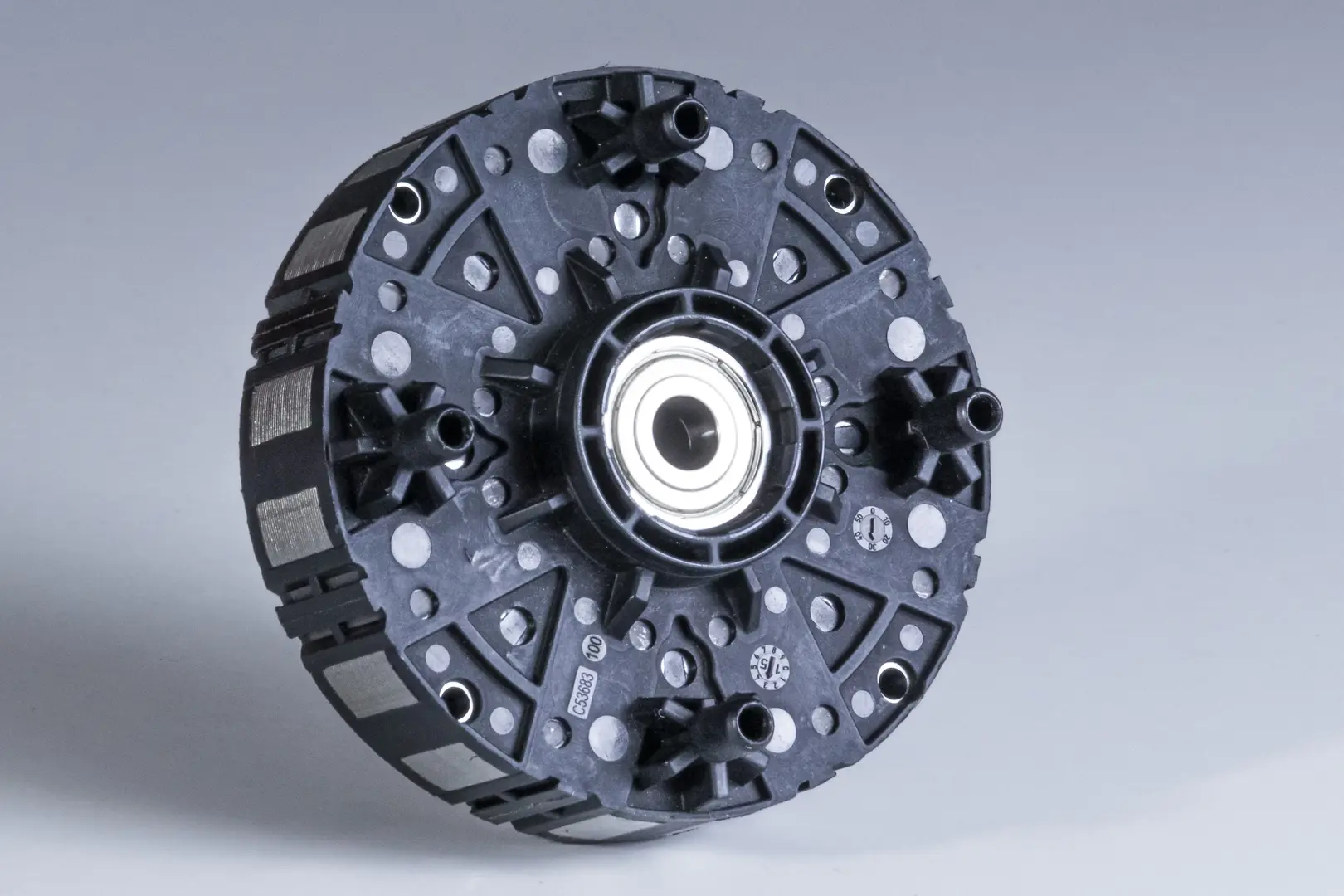

Over 25 Years of Expertise in Electromagnetic Core Assembly and Power Routing
The efficiency of an electric motor depends entirely on the seamless integration of its inner core and power distribution. Eckerle has over 25 years of experience in processing lamination stacks, permanent magnets, and complex busbars into highly efficient, ready-to-assemble motor systems. We bridge the gap between metal processing, magnetics, and precise insulation molding.
A special feature: We not only develop and produce the products themselves but also the automated and semi-automated production lines needed for manufacturing, all in-house.

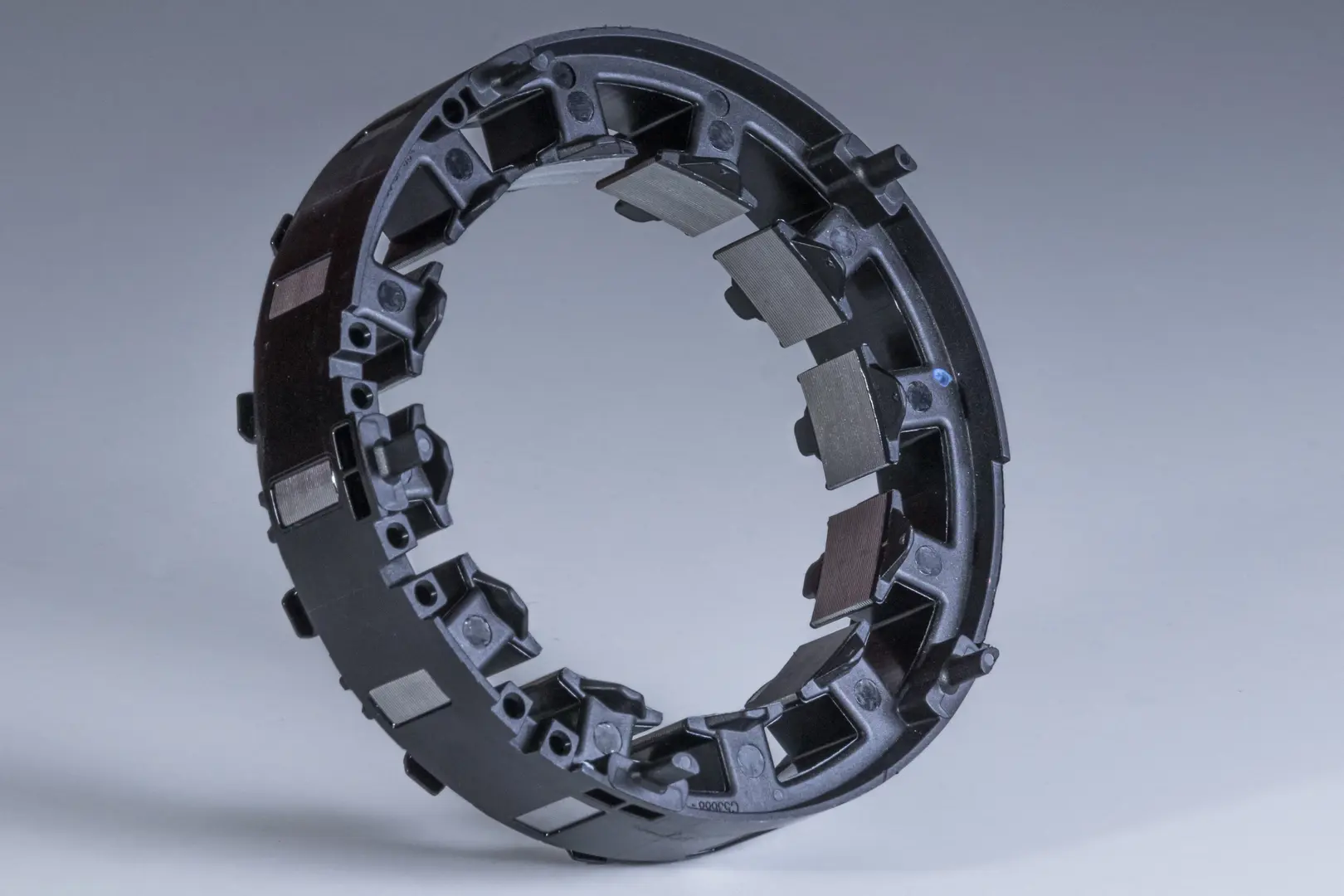

Technology & Design That Drive Performance
Function of Integrated Motor Components
As the primary driving and power-routing elements of electric motors, stators, rotors, and busbars must withstand extreme rotational forces and thermal loads.
Eckerle provides a fully integrated solution: from specialized overmolding for lamination stacks and magnet insertion to custom-shaped 3D busbars that replace bulky cable harnesses. This unified approach minimizes tolerances, reduces energy loss, and optimizes electromagnetic compatibility (EMC).
Lamination Stack
Insulated electrical steel sheets to minimize eddy current losses
Plastic Insulation & Overmolding
Protects windings from sharp edges and ensures dielectric strength
Permanent Magnets
Rare-earth or ferrite magnets precisely positioned and secured in the rotor

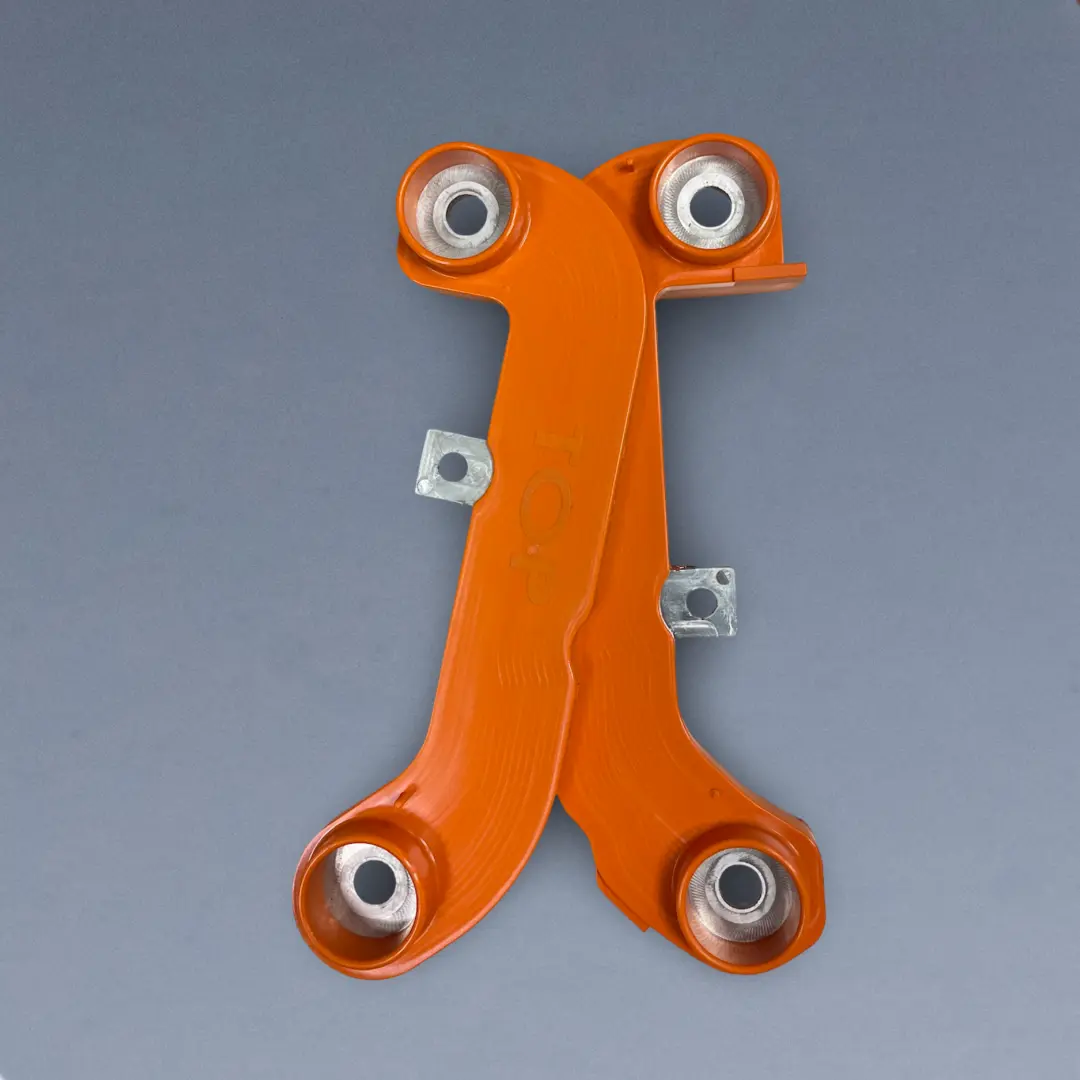

Integrated Busbars / Lead Frames
High-conductivity copper or aluminum parts for compact, high-current power routing
Rotor Shaft Integration
Balanced assembly for vibration-free, high-speed rotations
Automated Production
In-house development of customized and automated assembly lines
Core Technologies
Precision injection molding, stamping, advanced metal processing, and seamless assembly
Quality Assurance
Strict quality controls and state-of-the-art measurement technology – certified according to ISO 9001, ISO 14001, and IATF 16949
Why Choose Eckerle? Your advantages
Half a Century of Experience. Global Reach. Tailored Solutions.
Decades of experience, a reliable partner for OEMs
Creation and optimization of production-appropriate product designs
High-quality materials, long service life, high conductivity
Short delivery times, scalable serial production
Operates in 6 countries across three continents

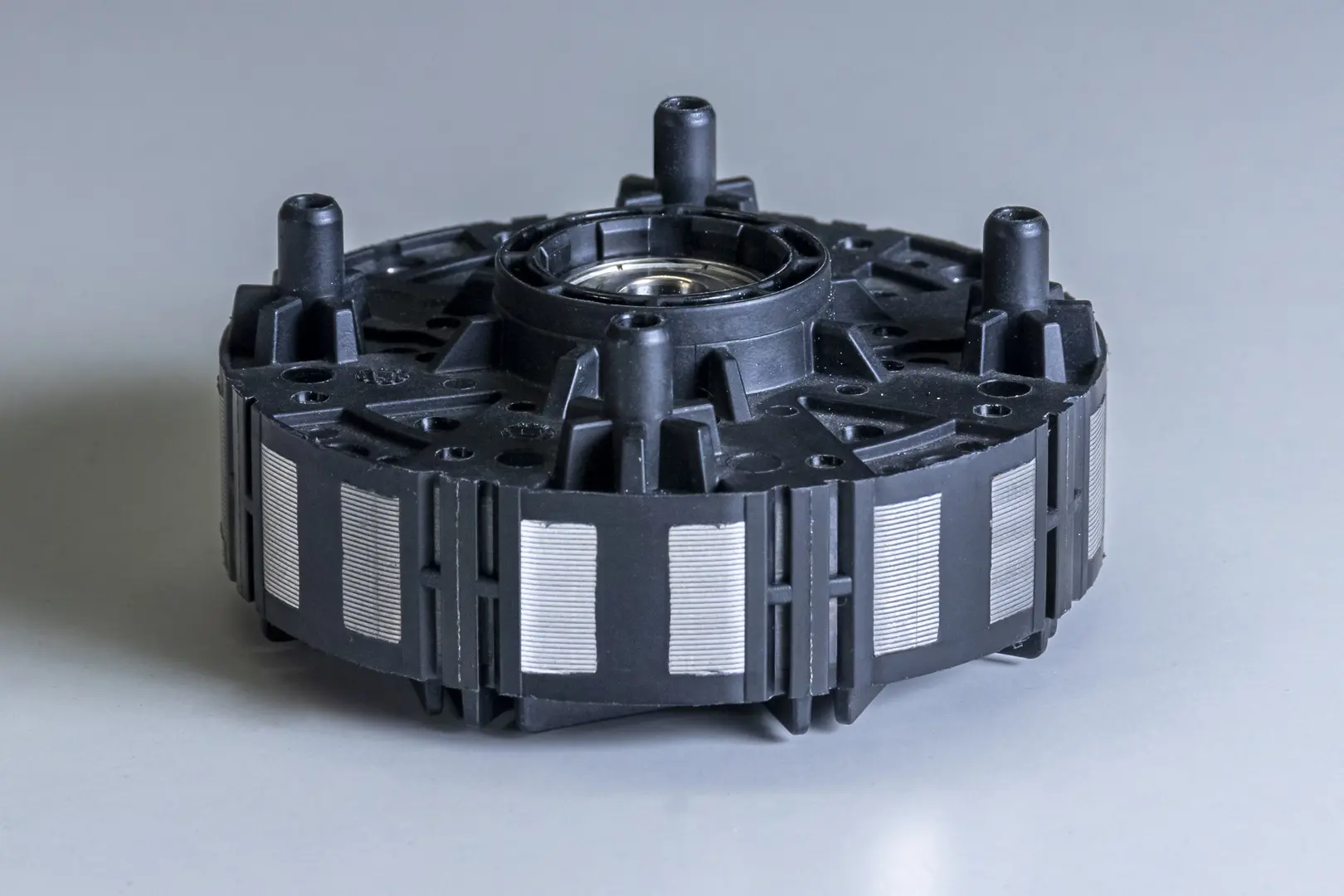

Application Areas of Stator, Rotor & Busbar Systems
From Automotive Powerhouses to Precision Power Tools – Versatility in Motion
Automotive & Mobility
- Custom busbars, stators, and rotors for electric power steering (EPS)
- Smart braking systems
- Thermal management pumps
- E-traction drives
Power Tools & Gardening
- Tailored stators and rotors for professional cordless industrial tools
Scalable Global Production
5,000 to 10 million units
annual production volume *
* Flexibly scalable depending on project requirements.
